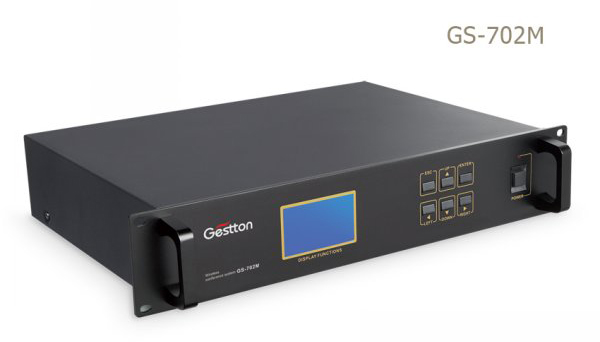

GS-702
GS-702
GS702 wireless conference system is the perfect combination of RFtechnology and digital control which can be free from troubles resulting fromcable connection. System adopts CPU control and frequency group selection.Professional hifi circuit design to produce the high quality timbre . Withcamera tracking function. It is suitable for all complex meeting occasions.
l Setting camera tracking function via maincontroller menu without any auxiliary equipment
l With LCD display to show all the information.
l It supports PALCO P/D, YAAN and SONY EVFO70camera agreement. Any other agreements can be downloaded under specialrequirement.
l Up to 1 chairman unit and 199 delegate unitswork with one main controller. It supports multi systems working at the sametime.
l Supports 1 chairman unit and 3 delegate unitsspeaking at the same time
l Speaking modes:Time off mode, Speakinglimitation mode,FIFO mode
l Built-in large-capacity Li battery which canwork 40 hours continuously.
l With priority button for chairman unit.
Frequency stability: ±0.0005% PLL synthesized
Carrier frequency: UHF 772-802MHz
Modulation: FM
Oscillation: PLL
Sensitivity: S/N >60dB at 25KHz, 6dBv
Band width:30MHz
Max deviation range:±45KHz
S/N: >105dB
T.H.D: <0.7%@1KHz
Frequency response: 45Hz-18KHz±1dB
GS-702C/D
l With detachable design for the MIC tube and MICbase.
l Adopt hyper cardioid-directional condensermicrophone, which can carry out high quality pick up.
l With LCD display. It can display signal, batteryPower ,ON/OFF, ID relevant key indication.
l With priority button for chairman unit
l With red ring indicator shows the active unit
Carrier frequency: UHF 772-802MHz
Oscillation: PLL
Harmonic radiation: <-65dBm
Sensitivity: S/N >60dB at 25KHz, 6dBv
Band width: 30MHz
Max deviation range: ±45KHz
Current consumption: <100mA
RF power: 15MW
Working time: 40 hours
Capsule: Condenser
