GS-416/408
- GS-416M
- GS-416R
- GS-416T
- GS-416 I
GS-416/GS-408 DIGITAL IR LANGUAGEDISTRIBUTION SYSTEM 16/8 CHANNELS
GS-416/GS-408 Introduction
GS-416/GS-408 aredesigned for multi-language internationalcongress. With new digital IR transmission technology, it provides a reliable communication,good timbre and high confidentiality.
Main Features:
Digital IRtransmission
16/8 languagechannels
Unlimited QTY forreceiver
High confidentiality
Anti-interferencefrom lighting/electromagnetism
Features of Receiver:
24 working hours
LCD display
Volume control
With hook
Features of Transmitter
30m working distance
With adjustable holder
Hand by handconnection for multi transmitters
Features of Interpreter
Dual interpreters inone console
Relay interpretationfrom other channels
Cough cut function
Volume control
GS-416M Specification
Power Supply:AC100-240V
Wattage:10W
Frequency Range:2M-6MHz
HF Output :2V-VPP
Max Audio Input:4V-VPP
Frequency Response:20Hz-20KHz
T.H.D.:<0.05% (1KHz)
Crosstalk Attenuation:>80dB (1KHz)
S/N:>80dB (A)
Dimension:483x323x90mm
Weight:5.2Kg
Rear Panel
[1]. Power Socket
[2]. Audio Input
[3]. Audio Output
[4]. Interpreter Port
[5]. Transmitter Port

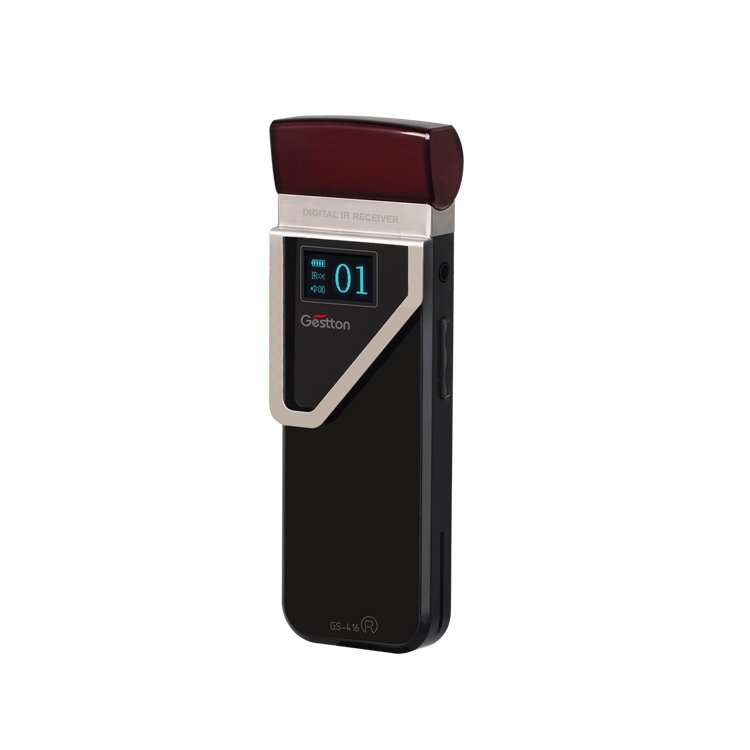

GS-416R Specification
Earphone Jack:3.5mm
Frequency Response:80Hz-20KHz
Sensitivity:90dB
S/N:>80dB
Distortion:< 0.1dB
Resistance:32Ω
Dynamic Range:>85dB
Power Consumption:100mW
Weight:0.2Kg
Dimension:170X62X16mm
GS-416T Specification
Power Supply:AC100-240V
Frequency Range:2M-6MHz(BAND4)
Wattage:50W
Working Distance:30m
Radiating Angle:+/-60°
HF Input:2V-VPP,minimum100mv-VPP
HF Output:2V-VPP,minimum100mv-VPP
Weight:5Kg
GS-416I Specification
Power Supply: DC 18V
Current: 60mA,maximum 80mA
Wattage: 1.08W~1.44W
Channel: 16CH/8CH
Sensitivity: -50dB
S/N: 65dB
Dimension: 372×232×44(mm)
Connection & Accessory:
Input:25P Parallel Male
Output:25P Parallel Female
Cable:25P Parallel Cable, 10m
Microphone Input:3.5mm ×2
Earphone Output:3.5mm×2
Headset: ×1
