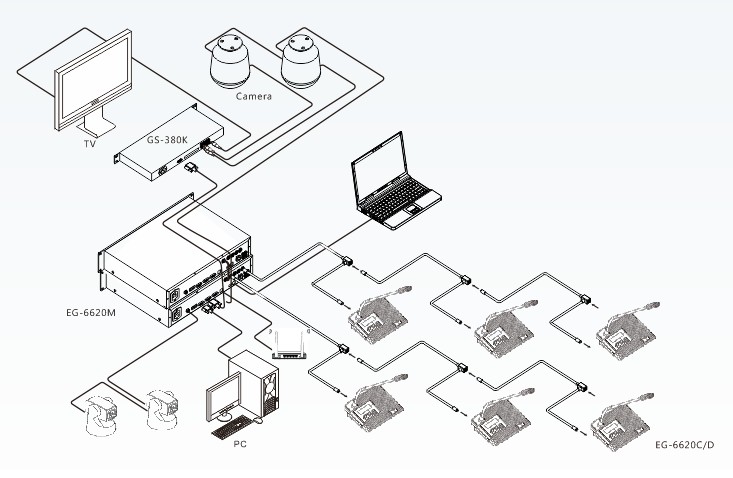

- EG-6620 System Connection
CAMERA TRACKING CONFERENCE SYSTEM
WITH TOUCH-SCREEN & NETWORK PORT

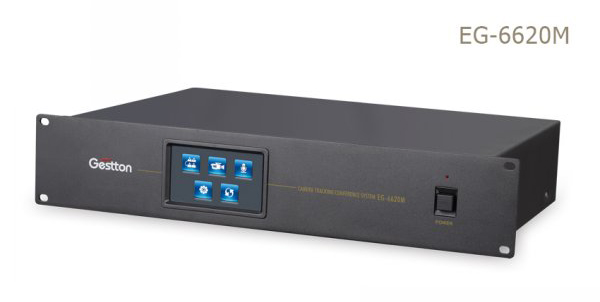

EG-6620M(MAIN CONTROLLER)
● Maximum 110 microphone units can be connected to one controller, can be expanded to 250 with expanding device
● Maximum 15 main controllers can be cascaded
● Camera tracking function, maximum 6 cameras can be connected via video switch device
● The camera tracking arrangement for EVI-D70 can be saved, maximum 5 groups to be saved
● System provides multiple camera agreement. User can add new agreement manually
● With picture freezing function when shifting tracking point
● System can be controlled by software on PC via RS232 port or USB port
● Virtual conference room can be shown on the software, to monitor conference detail
● Long-range control by smart phone/PC via internet ID
● Touch-screen control
● Audio recording to U flash disk directly
● Microphone units are free from wireless interference
EG-6620M SPECIFICATION
Power supply AC110V-240V Max current consumption 1A Frequency response 50Hz-20KHz Sensitivity -15dB S/N ratio 82dB PC control port USB Central controller port RS232 Audio output XLR*1 RCA*1 TCP/IP internet port RJ45*1 Dimension 483*323*90mm
CAMERA TRACKING CONFERENCE SYSTEM
WITH TOUCH-SCREEN & NETWORK PORT
EG-6620C/6620D(MICROPHONE UNIT)
EG-6620C/D MICROPHONE UNIT
Main Feature
● Professional and elegant Aluminium alloy Panel
● Hyper-cardioid directional gooseneck microphone
● LCD window shows the operation information
● Built in loudspeaker
● Red ring indicator shows working condition

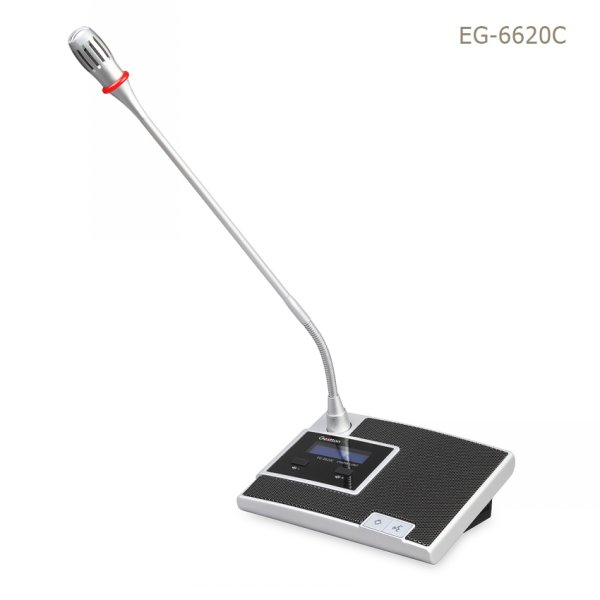

EG-6620C
With priority button to cut off delegate unit
Detachable design for Mic tube & Mic base
EG-6620D
Detachable design for Mic tube & Mic base
EG-6620C/D SPECIFICATION
Power supply DC24V Max current consumption 60mA Frequency response 100Hz-15KHz Sensitivity -50dB/Pa S/N ratio 70dB Mic core Hyper cardioid condenser Cable 8P (T cable, 1.5m*2.1m) Earphone jack 3.5mm Built-in speaker 1W 8Ω Dimension 193*145*65mm Mic tube 420mm
CAMERA TRACKING CONFERENCE SYSTEM
WITH TOUCH-SCREEN & NETWORK PORT
EG-6621C/6621D(BUILT-IN TYPE MICROPHONE UNIT)
Main Feature
● Built-in aluminum alloy Panel
● Hyper-cardioid directional gooseneck microphone
● With earphone jack
● Red ring indicator shows working condition
EG-6621C
With priority button to cut off delegate unit
Detachable design for Mic tube & Mic base

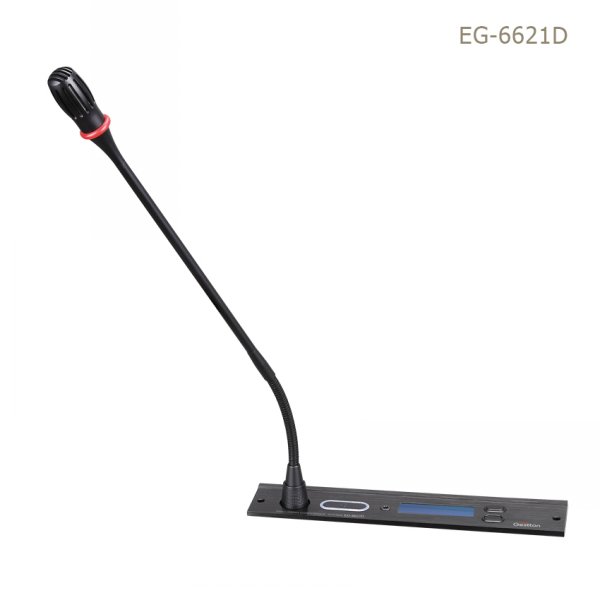

EG-6621D
Detachable design for Mic tube & Mic base
EG-6621C/D SPECIFICATION
Power supply DC24V Max current consumption 60mA Frequency response 100Hz-15KHz Sensitivity -50dB/Pa S/N ratio 70dB Mic core Hyper cardioid condenser Cable 8P (T cable, 1.5m*2.1m) Earphone jack 3.5mm Dimension 268*48*127mm Mic tube 420mm Color black/silver Main Feature
.Professional and elegant Aluminium alloy Panel
.Hyper-cardioid directional gooseneck microphone
.Built in loudspeaker
.Red ring indicator shows working condition

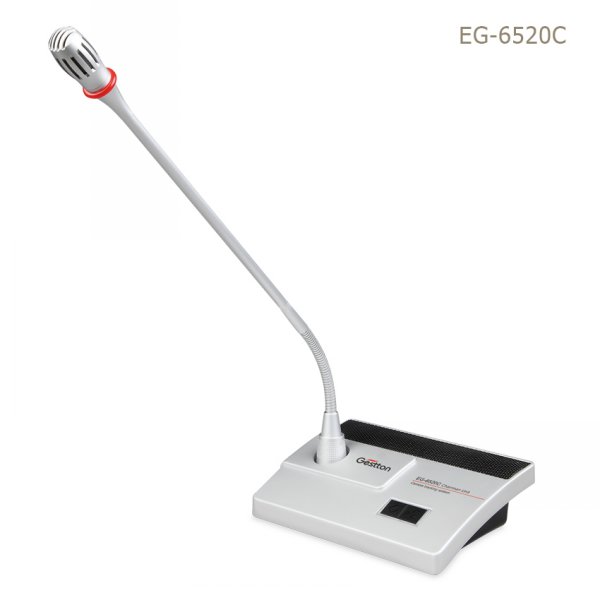

EG-6520C
With priority button to cut off delegate unit
Detachable design for Mic tube & Mic base
EG-6520D
Detachable design for Mic tube & Mic base
EG-6520C/D SPECIFICATION
Power supply DC24V Max current consumption 40mA Frequency response 100Hz-12KHz Sensitivity -50dB/Pa S/N ratio 70dB Mic core Hyper cardioid condenser Cable 8P (T cable, 1.5m*2.1m) Earphone jack 3.5mm Built-in speaker 1W 8Ω Dimension 167*105*48mm Mic tube 420mm
