EG-3500
- EG-3500M
- EG-3530C/D
- EG-3520C/D
- EG-3501C/D
EG-3500 Introduction
EG-3500 series is designed for simpleconference room. It is a highly stable conferencesystem with easy operation.
Main Features:
Up to 100 units can be connected to onesystem, maximum 12 chairman units. It can beexpanded to 250 units with expanding device.
With speaking mode as FIFO,LIFO, voicecontrol, chairman mode, all on mode.
With camera tracking function, supportsmost of camera protocols, even manually editing protocol.
Support centralcontroller
Support unit hot-plugconnection
Features of Units:
Hyper-cardioid directional condensercapsule
1500px speaking distance
Anti-interference fromcellphone
Detachable design for mic tube & micbase
With earphone jack
EG-3500M Specification
Power Supply:AC110V-240V
Max Current:1A
Frequency Response:50Hz-20KHz
S/N:>85dBA
Distortion:<0.05%
Dimension(L*W*H):483x323x90(mm)
Weight:5.5kg
Color: Black
Installation:19” Rack Case
EG-3500M Rear Panel
[1]. Power Socket
[2]. 6.3mm Earphone Jack
[3]. 6.3mm Audio Input
[4]. XLR Output
[5]. Aux RCA jacks
[6]. RS485 & RS232 Camera Port
[7]. Camera Switch Port
[8]. RS-232 Port for Central Controller
[9]. RS-232 Port for PC
[10] Microphone Unit Port

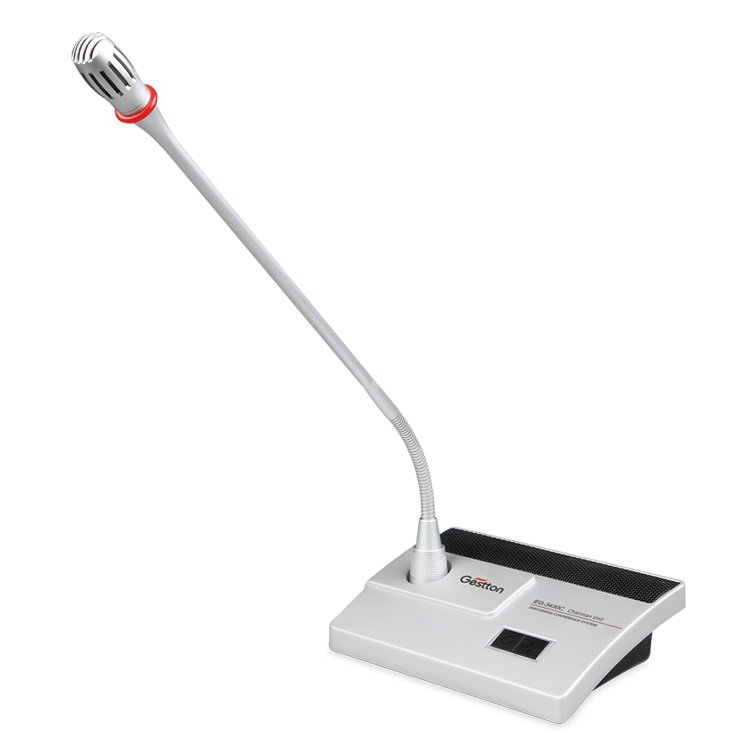

EG-3530C/D Specification
Power Supply:DC 24V
Max Current:60mA
Sensitivity:-50dB/Pa
Frequency:100Hz-12KHz
S/N:>75dBA
Dimension:167x105x48mm
Length of Mic Tube: 420mm
Weight:1.15Kg
Color:Silver/Black
Connection& Accessory:
Earphone Jack: 3.5mm
Communication: 9P Screw Lock Port
Mic Tube Jack: 4P Screw Lock Jack
Speaker: 1W/8Ω
Cable: 9P T-cable (2.1m*1.5m)

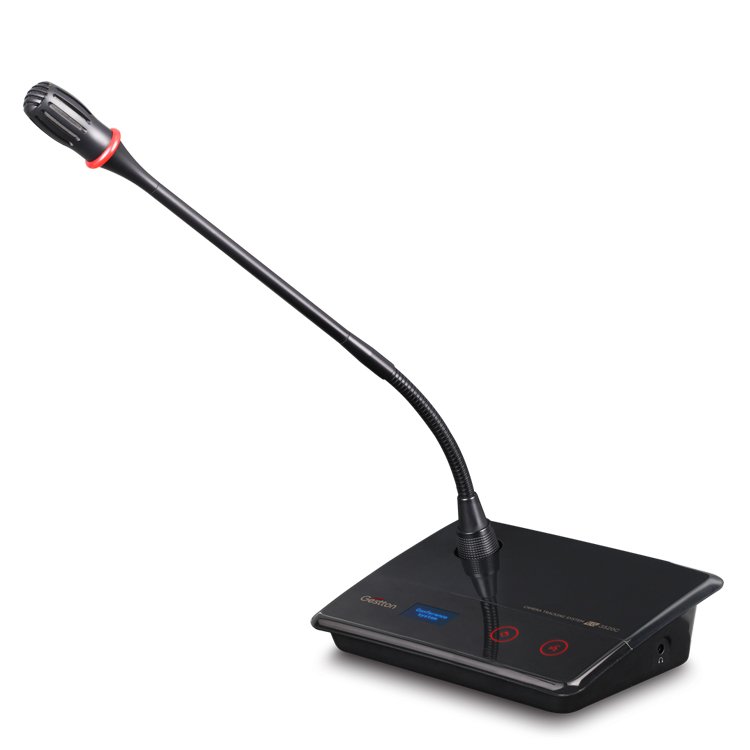

EG-3520C/D Specification
Power Supply:DC 24V
Max Current:40mA
Sensitivity:-46dB/Pa
Frequency Response:100Hz-12KHz
S/N:>75dBA
Distortion:<0.1%
Dimension:170x117x44mm
Length of Mic Tube: 420mm
Weight:0.85Kg
Color:Black
Connection& Accessory:
Earphone Jack: 3.5mm
Communication: 9P Screw Lock Port
Mic Tube Jack: 4P Screw Lock Jack
Cable: 9P T-cable (2.1m*1.5m)

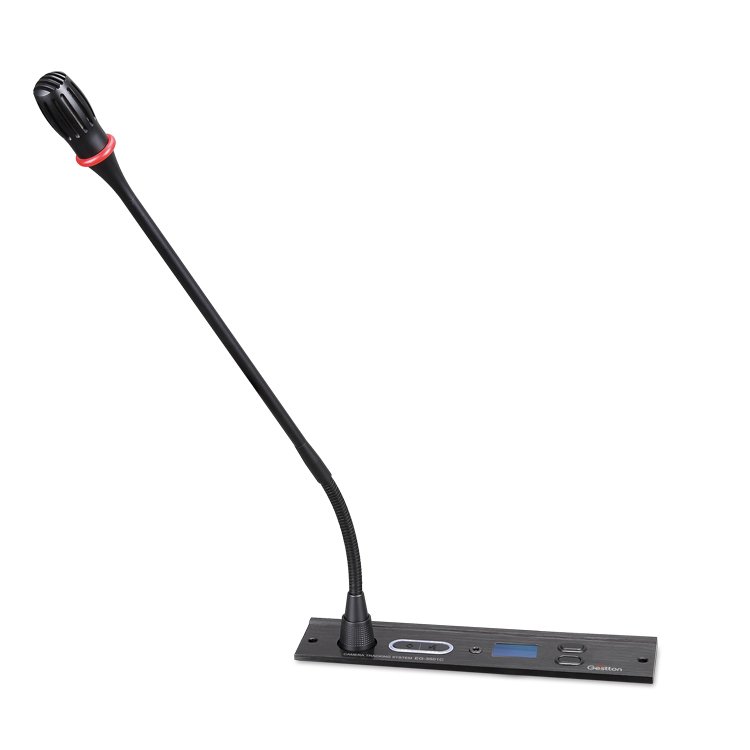

EG-3501C/D Specification
Power Supply:DC 24V
Max Current:40mA
Sensitivity:-46dB/Pa
Frequency Response:100Hz-12KHz
S/N:>75dBA
Distortion:<0.1%
Dimension:268x44x127mm
Length of Mic Tube: 420mm
Weight:0.85Kg
Color:Silver/Black
Installation: Built-in Type
Connection& Accessory:
Earphone Jack: 3.5mm
Communication: 9P Screw Lock Port
Mic Tube Jack: 4P Screw Lock Jack
Cable: 9P T-cable (2.1m*1.5m)
