EG-6630 VOTING,CAMERA TRACKING,SIGN-IN
VOTING，CAMERA TRACKING CONFERENCE SYSTEM
WITH TOUCH-SCREEN & NETWORK PORT
EG-6630M (MAIN CONTROLLER)
Main Feature:
● Maximum 110 microphone units can be connected to one controller, can be expanded to 250 with expanding device
● Maximum 15 main controllers can be cascaded
● Camera tracking function, maximum 6 cameras can be connected via video switch device
● The camera tracking arrangement for EVI-D70 can be saved, maximum 5 groups to be saved
● System provides multiple camera agreement. User can add new agreement manually
● With picture freezing function when shifting tracking point
● System can be controlled by software on PC via RS232 port or USB port
● Virtual conference room can be shown on the software, to monitor conference detail
● Long-range control by smart phone/PC via internet ID
● Touch-screen control
● Audio recording to U flash disk directly
● With voting function, can work with wireless voting system
● With IC card reader for sign-in
● Microphone units are free from wireless interference
EG-6630M SPECIFICATION
Power supply
AC110V-240V
Max current consumption
1A
Frequency response
50Hz-20kHz
Sensitivity
-15dB
S/N ratio
82dB
PC control port
USB
Central controller port
RS232
Audio output
XLR*1 RCA*1
TCP/IP internet
RJ45*1
Dimension
483*323*90mm
VOTING，CAMERA TRACKING CONFERENCE SYSTEM
WITH TOUCH-SCREEN & NETWORK PORT
EG-6630C/6630D(MICROPHONE UNIT)
Main Feature:
● Professional and elegant Aluminium alloy Panel
● Hyper-cardioid directional gooseneck microphone
● LCD window shows the operation information
● Built in loudspeaker
● 6 keys for sign-in , voting and volume adjustment
● Red ring indicator shows working condition
EG-6630C
With priority button to cut off delegate unit
Detachable design for Mic tube & Mic base
EG-6630D
Detachable design for Mic tube & Mic base
EG-6630C/D SPECIFICATION
Power supply
DC24V
Max current consumption
60mA
Frequency response
100Hz-12KHz
Sensitivity
-50dB/Pa
S/N ratio
70dB
Mic core
Hyper cardioid condenser
Cable
8P Aviation plug (T cable, 1.5m*2.1m)
Earphone jack
3.5mm
Built-in speaker
1W 8Ω
Dimension
193*145*65mm Mic tube 420mm
VOTING，CAMERA TRACKING CONFERENCE SYSTEM
WITH TOUCH-SCREEN & NETWORK PORT
EG-6631C/6631D(MICROPHONE UNIT)
Main Features:
● Built-in aluminum alloy Panel
● Hyper-cardioid directional gooseneck microphone
● LCD window shows the operation information
● 6 keys for sign-in , voting and volume adjustment
● Red ring indicator shows working condition

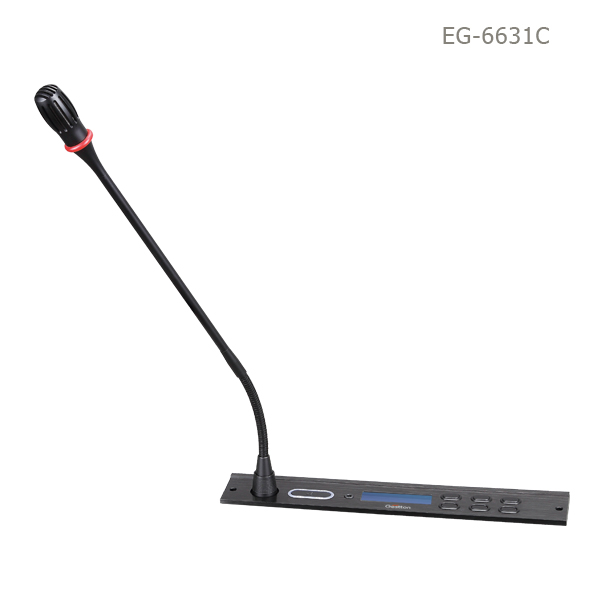

EG-6631C
With priority button to cut off delegate unit
Detachable design for Mic tube & Mic base
EG-6631D
Detachable design for Mic tube & Mic base
EG-6631C/D SPECIFICATION
Power supply
DC24V
Max current consumption
70mA
Frequency response
100Hz-12KHz
Sensitivity
-50dB/Pa
S/N ratio
70dB
Mic core
Hyper cardioid condenser
Cable
8P Aviation plug (T cable, 1.5m*2.1m)
Earphone jack
3.5mm
Dimension
312*48*127mm Mic tube 420mm
Color
black/silver
VOTING，CAMERA TRACKING CONFERENCE SYSTEM
WITH TOUCH-SCREEN & NETWORK PORT
EG-6630(System connection)
